Extended Platform
Supports long components, machinery and cumbersome production loads.
MARCO Lift Tables

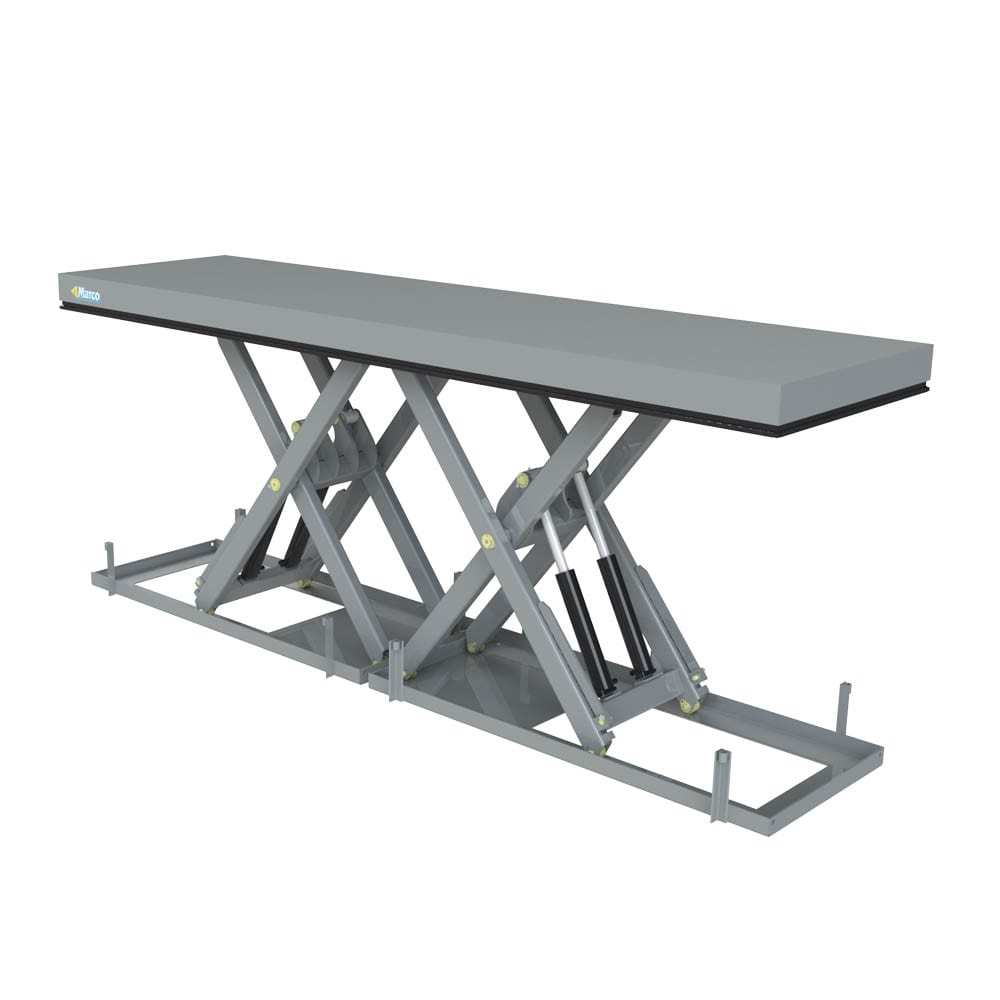

MARCO Twin Scissor Lift Tables for Long Loads
Long-Platform Industrial Lift Tables
Electro-hydraulic lift tables engineered for safe, stable handling of long, bulky and heavy loads across an extended platform.
Up to 5,000 kgModel-dependent capacity
Up to 6,050 mmStandard platform length
900–2,000 mmStandard lift stroke range
SynchronisedParallel lifting movement
Extended platform for long and cumbersome loads
Two or more end-to-end scissor mechanisms for stability
Surface-mounted or pit-recessed installation options
Long-Load Handling
What Is a Twin Scissor Lift Table?
A twin scissor lift table uses two or more scissor mechanisms positioned end to end beneath one extended platform. The arrangement provides the platform length and lifting capacity needed for long or bulky loads that cannot be handled effectively on a standard lift table.
Precisely controlled synchronisation keeps the platform level throughout the lifting stroke. Twin scissor tables can operate as standalone work-positioning equipment or form part of production lines, loading systems and automated material-flow installations.
Level Lifting
Synchronised scissor movement maintains controlled parallel travel.
High Stability
Multiple lifting mechanisms support the load across a wide working area.
System Integration
Can be configured for manual or automated handling environments.
Technical Overview
Twin Scissor Table Configuration
The correct table is selected around the load, platform dimensions, lifting stroke, duty cycle and installation environment.
| Feature | Typical Available Configuration |
|---|---|
| Lifting capacity | Up to 5,000 kg, depending on model and configuration |
| Lift stroke | 900–2,000 mm across the standard range; other requirements assessed individually |
| Closed height | Approximately 230–400 mm, depending on configuration |
| Platform length | Up to approximately 6,050 mm within the standard range |
| Platform width | Typically 1,000–2,000 mm |
| Installation | Surface-mounted or pit-recessed |
| Control system | Electro-hydraulic operation with synchronised parallel lifting |
| Safety arrangement | Specified for the application and may include safety edges, overload protection, emergency stops, maintenance supports and guarding |
Final capacity, dimensions, travel, control method and safety provisions are confirmed following an application and site assessment.
Typical Uses
Applications for Twin Scissor Lift Tables
Designed for controlled positioning and transfer of extended loads in industrial environments.
Long Components
Handle beams, panels, assemblies and other elongated production components.
Assembly Workstations
Position large workpieces at an efficient height for fabrication and assembly.
Production Lines
Raise, lower or level loads between stages in manufacturing processes.
Packaging Systems
Support long or bulky loads within packing and pallet-transfer operations.
Loading and Transfer
Compensate for height differences during material-transfer operations.
Automated Handling
Integrate controlled lifting into conveyors and material-flow systems.
Need a twin scissor table for a long load?
Tell us the load weight and dimensions, required travel, duty cycle and operating environment. Our team will help specify the correct MARCO table and safety arrangement.
