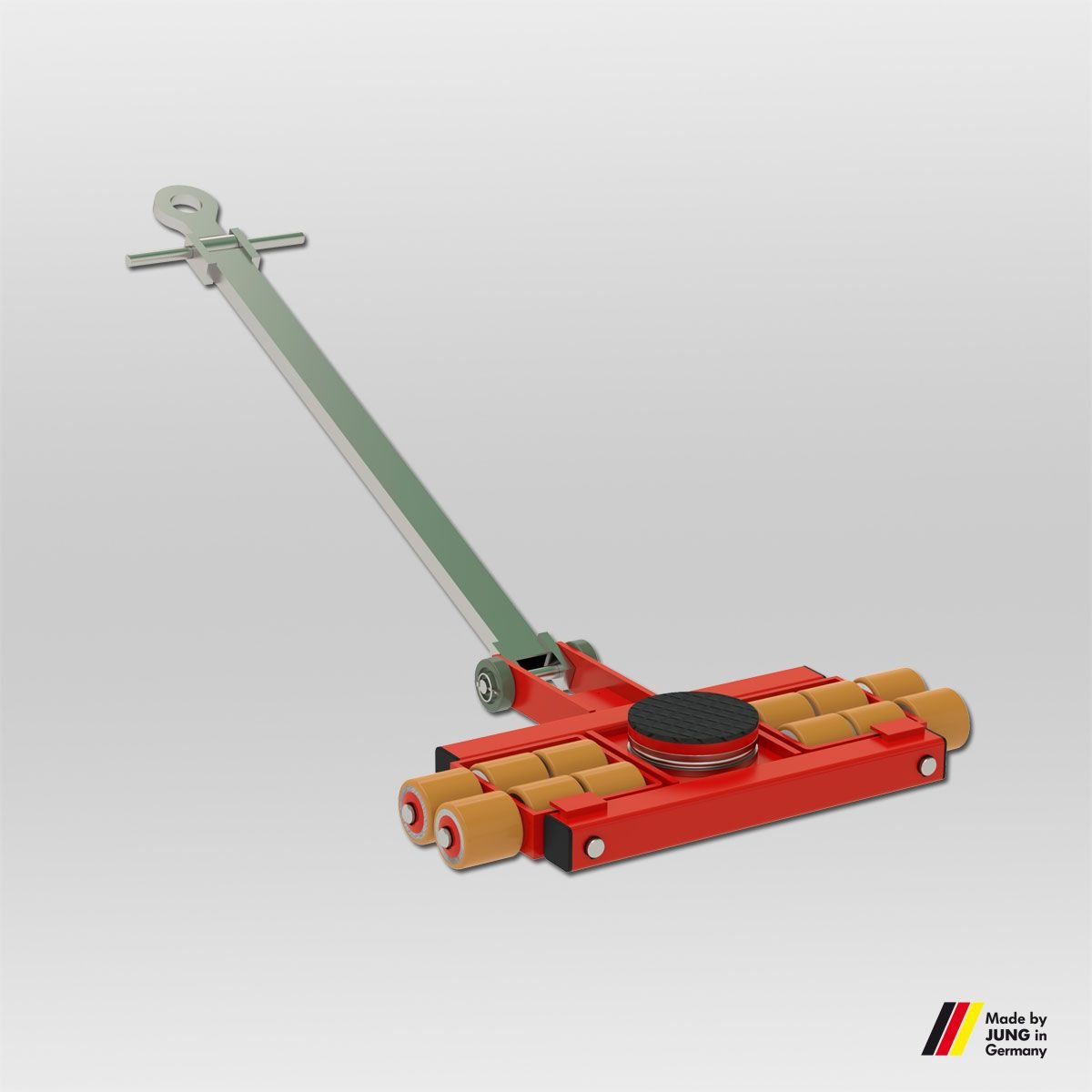

JL Steerable Heavy Duty Transport Trolley – K Series
The JL steerable transport trolleys from JUNG form the high-capacity steerable section of the K Series. Designed for moving heavy machinery and industrial equipment, JL trolleys provide load capacities from 9 to 14 tonnes and can be combined with matching JFB rear trolleys to form complete transport systems up to 28 tonnes.
- Ball-bearing supported steerable turntable
- Supplied with steering handle and pulling eye
- Low-profile 110 mm installation height
- Standard and K Professional models available
- Designed to combine with matching JFB rear trolleys
Directional control for demanding machinery moves
The JL trolley is positioned beneath the load to provide steering control during movement. A rotating load plate supports the machinery while the long steering handle allows the operator to control direction as the load travels across a suitable level floor.
Steerable Turntable
A ball-bearing supported turntable allows the trolley to change direction beneath the load.
Low Profile
The 110 mm installation height reduces the clearance required beneath heavy equipment.
Heavy Load Capacity
JL models provide individual steerable capacities from 9 tonnes through to 14 tonnes.
Complete System
Pair the JL steerable trolley with the corresponding JFB rear trolley to form a complete transport set.
The steering point of the transport system
During a typical machinery move, the JL trolley is positioned beneath one end of the load. Its turntable supports the machine while allowing the trolley to rotate and guide the direction of travel.
The steering handle provides direct directional control, while a corresponding JFB adjustable trolley supports the opposite end of the machinery.
Together, the two components create a low-profile machinery-moving system that can be selected around the required load capacity.
Choose JL when you require a higher-capacity steerable trolley for machinery and industrial loads. For lower-capacity steerable applications, the JLB range provides additional K Series options.
Built for industrial machinery movement
JL steerable trolleys are designed for controlled movement of heavy equipment within industrial environments where sufficient floor capacity and suitable level surfaces are available.
Production Machinery
Reposition manufacturing equipment during production line installation or factory reconfiguration.
Machine Installation
Steer heavy machinery from a staging area towards its final installation position.
Plant Maintenance
Move equipment temporarily to provide access for maintenance, repair or replacement work.
Heavy Equipment Relocation
Controlled internal movement of heavy machinery within factories, workshops and warehouses.
JL, JLB or JFB – what is the difference?
The K Series contains different trolley types so the system can be selected around both the load capacity and the role each trolley performs.
JL Steerable Trolley
Higher-capacity steerable front trolley for machinery loads from 9 to 14 tonnes, depending on model.
JLB Steerable Trolley
Lower-capacity steerable K Series options for applications that do not require the larger JL capacities.
JFB Adjustable Trolley
Adjustable twin-cassette rear trolley designed to work with the corresponding steerable JL or JLB unit.
JL K Series capacities
Standard and Professional JL models are available depending on the individual trolley capacity and total transport system capacity required.
| Model | Range | JL Capacity | Matched Set Capacity | Height |
|---|---|---|---|---|
| JL 9 K | K Series | 9 t | 18 t | 110 mm |
| JL 12 K | K Series | 12 t | 24 t | 110 mm |
| JL 10 K Professional | K Professional | 10 t | 20 t | 110 mm |
| JL 14 K Professional | K Professional | 14 t | 28 t | 110 mm |
Matched set capacities refer to the appropriate steerable and rear transport trolley combination. Equipment selection should take account of load weight, dimensions, centre of gravity, floor condition and available manoeuvring space. Specifications may be subject to manufacturer updates.
Higher capacity with improved steering performance
Professional JL models extend the available capacity while retaining the compact 110 mm K Series installation height.
Up to 14t
JL Professional steerable trolley capacity extends to 14 tonnes.
Up to 28t Set
Matching JL and JFB components can form transport sets with capacities up to 28 tonnes.
Reduced Steering Effort
Professional models use a twin-castor design intended to reduce rolling friction and steering effort.
110 mm Height
Increased capacity is achieved while retaining the low K Series installation height.
Need to move heavy machinery?
Tell us the machine weight, dimensions, available clearance and the distance it needs to travel. We can help identify the appropriate JL steerable trolley and matching rear transport trolley for the application.
