Pneumatic Industrial Manipulator – ATISmirus

The ATISmirus range combines articulated rigid arms with pneumatic load balancing to help operators lift, move, rotate and accurately position heavy, bulky or offset loads.

Designed around the load, working area and production process, each system provides smooth operator-controlled movement while reducing the physical effort involved in repetitive or demanding handling tasks.

Load capacities up to 600 kg

Working radii up to 4,400 mm

Suitable for centred and offset loads

Custom gripping tools available

Request a Quote

Controlled Handling with Minimal Operator Effort

ATISmirus is a pneumatic zero-gravity handling system developed for applications where stability, precise positioning and ergonomic movement are essential.

Rigid-Arm Stability

The articulated rigid-arm structure helps minimise load oscillation and supports controlled positioning.

Offset Load Handling

Suitable for products with complex shapes or loads whose centre of gravity is not directly below the lifting point.

Pneumatic Operation

Powered by clean, dry compressed air, with no electrical connection required for normal operation.

Tailored Gripping Tools

Each system can be equipped with gripping equipment designed around the product and required movement.

The ATISmirus Range

Five models are available to cover applications ranging from fast, repetitive handling of lighter components to the controlled movement of loads weighing up to 600 kg.

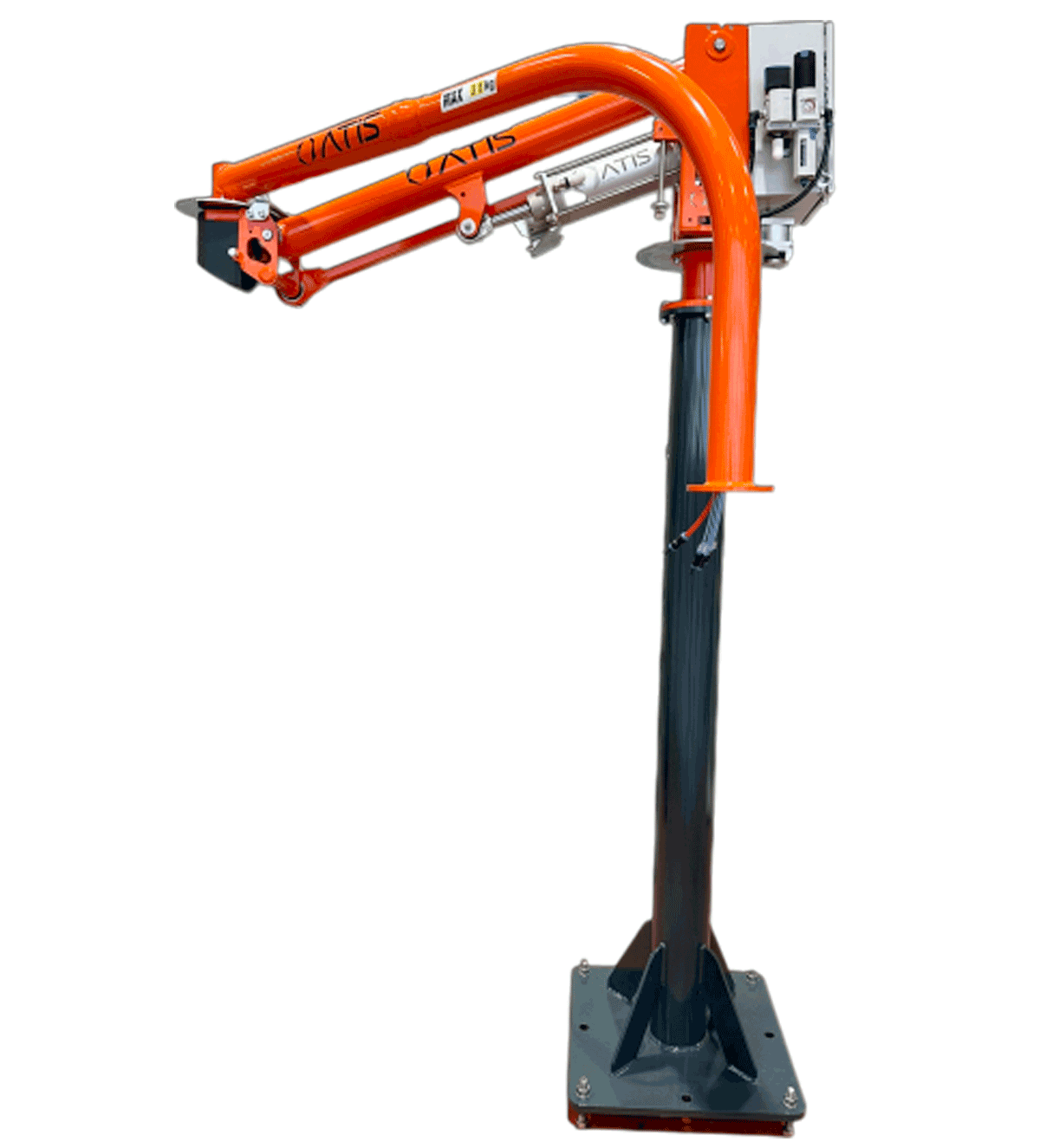

ATISmirus 80

Maximum capacity: 115 kg

The smallest model in the range, designed for lighter loads, shaped products and high-frequency handling cycles where speed and accurate movement are important.

Maximum radius: 3,100 mm

Minimum radius: 400 mm

Vertical stroke:
1,000 / 1,250 / 1,500 mm

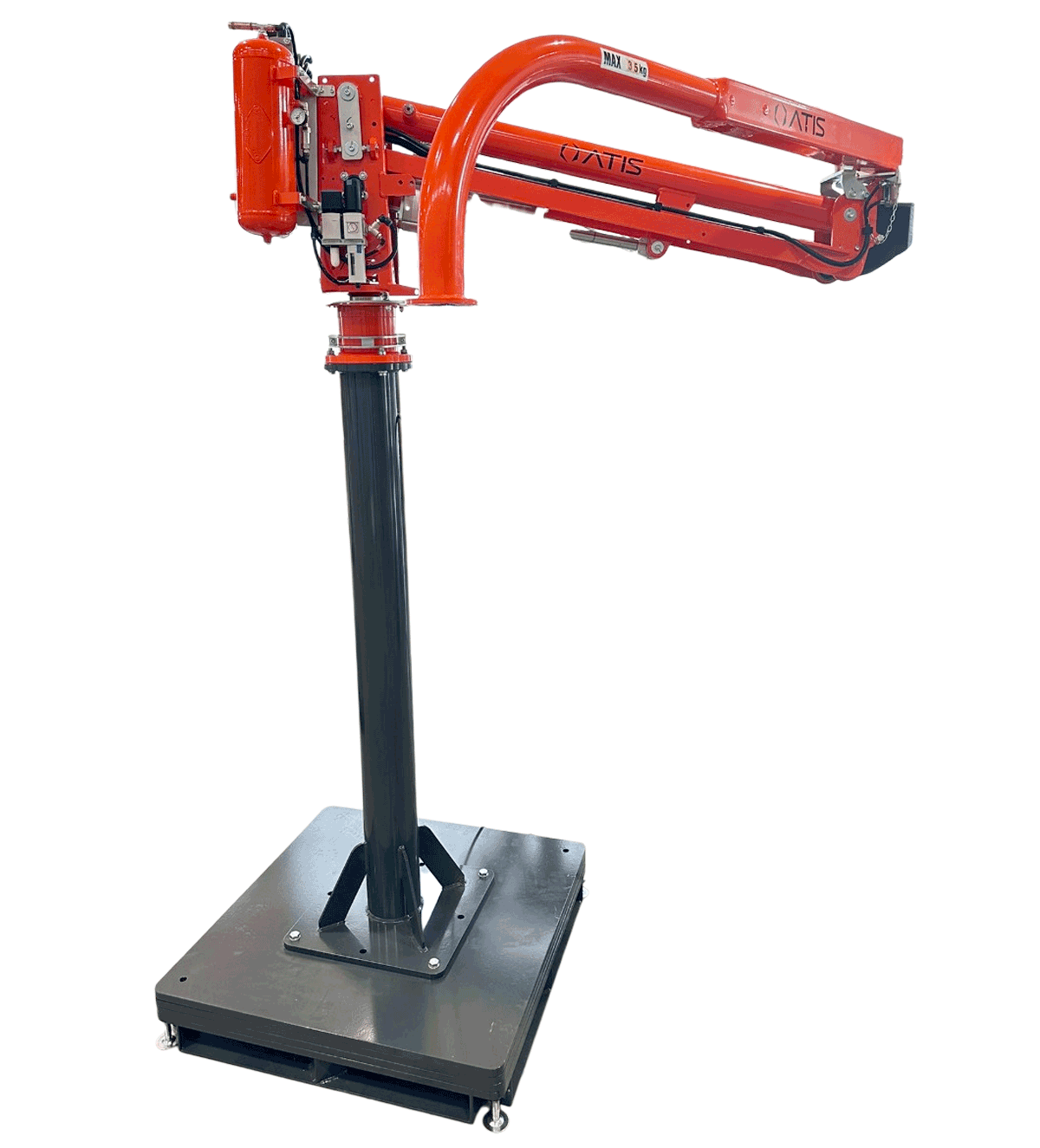

ATISmirus 100

Maximum capacity: 180 kg

A versatile model offering a balance between lifting capacity, working radius and manoeuvrability for a wide range of industrial handling applications.

Maximum radius: 4,000 mm

Minimum radius: 400 mm

Vertical stroke:
1,500 / 1,750 / 2,000 / 2,250 mm

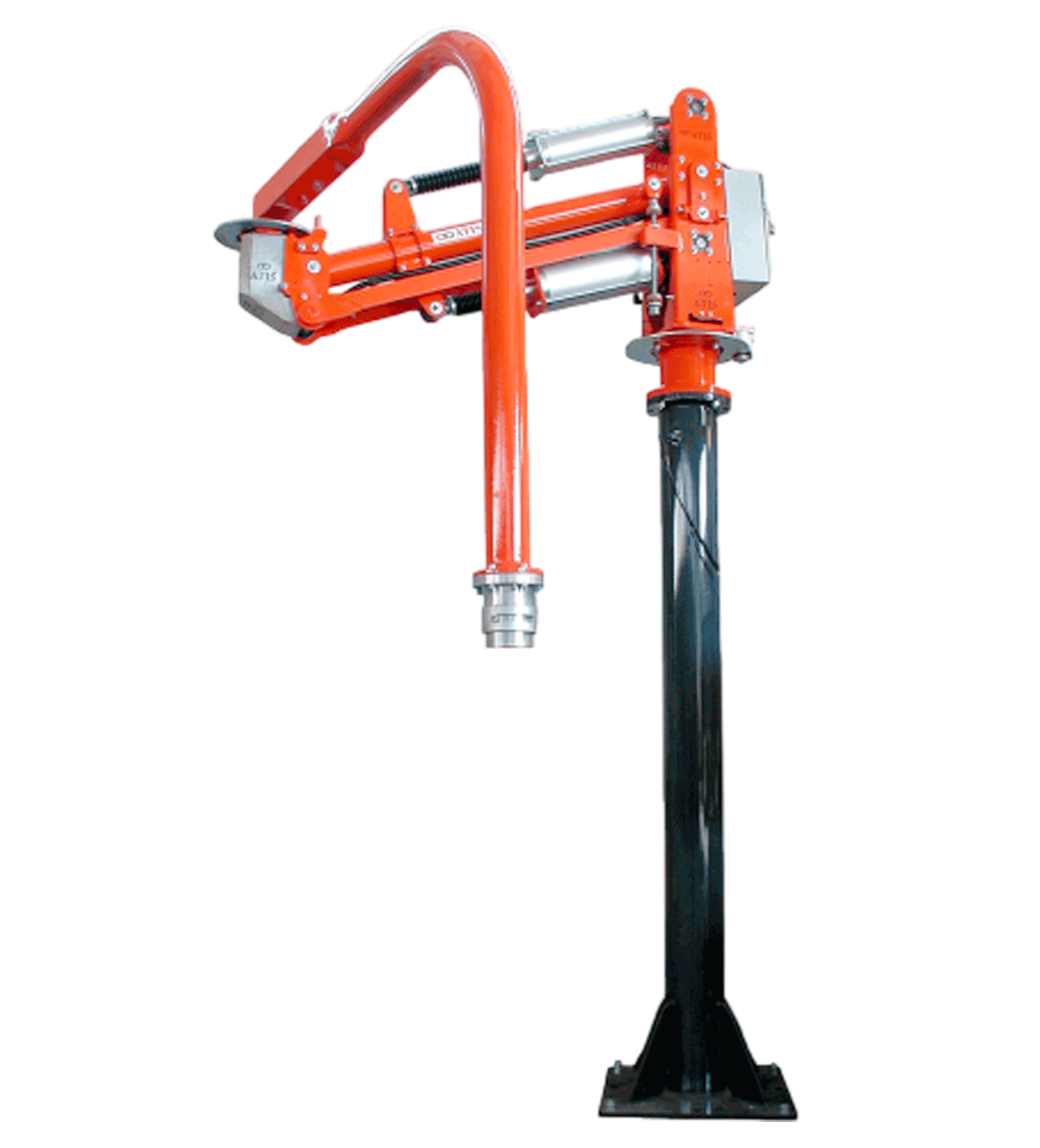

ATISmirus 200

Maximum capacity: 260 kg

An enhanced rigid-arm model developed for heavier products while maintaining controlled movement, accurate positioning and operator-friendly handling.

Maximum radius: 3,250 mm

Minimum radius: 400 mm

Vertical stroke:
1,500 / 1,750 / 2,000 / 2,250 mm

ATISmirus 300

Maximum capacity: 440 kg

Designed for heavier industrial loads and applications requiring extended reach, stable movement and precise operator-controlled positioning.

Maximum radius: 4,400 mm

Minimum radius: 500 mm

Vertical stroke:
1,500 / 1,750 / 2,000 / 2,250 mm

ATISmirus 500

Maximum capacity: 600 kg

The highest-capacity model in the range, engineered for demanding applications involving large, heavy or offset products.

Maximum radius: 4,000 mm

Minimum radius: 700 mm

Vertical stroke:
1,400 / 1,650 / 1,850 / 2,100 mm

Model Comparison

Model Maximum net capacity* Maximum radius* Minimum radius Vertical stroke
Mirus 80 115 kg at 2,100 mm 3,100 mm at 60 kg 400 mm 1,000–1,500 mm
Mirus 100 180 kg at 2,900 mm 4,000 mm at 100 kg 400 mm 1,500–2,250 mm
Mirus 200 260 kg at 2,450 mm 3,250 mm at 180 kg 400 mm 1,500–2,250 mm
Mirus 300 440 kg at 2,450 mm 4,400 mm at 200 kg 500 mm 1,500–2,250 mm
Mirus 500 600 kg at 2,700 mm 4,000 mm at 300 kg 700 mm 1,400–2,100 mm

*Figures are based on an operating air pressure of 0.7 MPa and exclude the gripping tool. Final capacity and dimensions are confirmed according to the selected configuration and application.

Common Technical Features

Pneumatic System

  • Pneumatic-only operation
  • Compressed-air supply: 0.5–0.8 MPa
  • Clean, dry and oil-free air required
  • Noise level below 70 dB
  • No electrical power connection required for standard operation

Movement and Rotation

  • Articulated parallelogram and terminal arm
  • Continuous 360° rotation around the column axis
  • Intermediate-axis rotation up to 300°
  • Manual or pneumatic operating movements
  • Controlled handling in multiple directions

Installation Configurations

The manipulator can be configured around the available floor space, overhead structure, required operating radius and number of workstations.

Fixed Floor Column

Permanent column-mounted installation.

Self-Standing Base

Baseplate installation without fixing directly to the floor.

Mobile Base

Wheeled configuration for suitable applications.

Fixed Overhead

Suspended installation to keep the floor area clear.

Sliding Overhead

Rail-mounted installation for extended coverage.

Custom Gripping Systems

The gripping system is designed around the shape, weight, surface, centre of gravity and required movement of the product.

Depending on the application, the manipulator may be equipped with vacuum suction systems, pneumatic grippers, mechanical clamps, expanding tools, hooks, forks or another purpose-designed handling attachment.

The complete system is therefore configured as one handling solution rather than selecting the manipulator and lifting attachment independently.

Information Required

  • Load weight and dimensions
  • Centre of gravity
  • Pick-up and release positions
  • Required rotation or tilting
  • Available headroom and radius
  • Operating environment

Discuss Your Handling Application

Tell us about the load, required movement and available working area. Our team can help identify the appropriate ATISmirus model, mounting arrangement and gripping system.
